ItemNo :
ZF700Brand:
GROTECHMOQ :
1Orgins :
ChinaColor :
Customizedport :
Any Port In ChinaLead Date :
15-45daysPrice Range:
50000-100000/1Trichromatic RGB CCD:
5400elements×3 Lines
/Products Features/

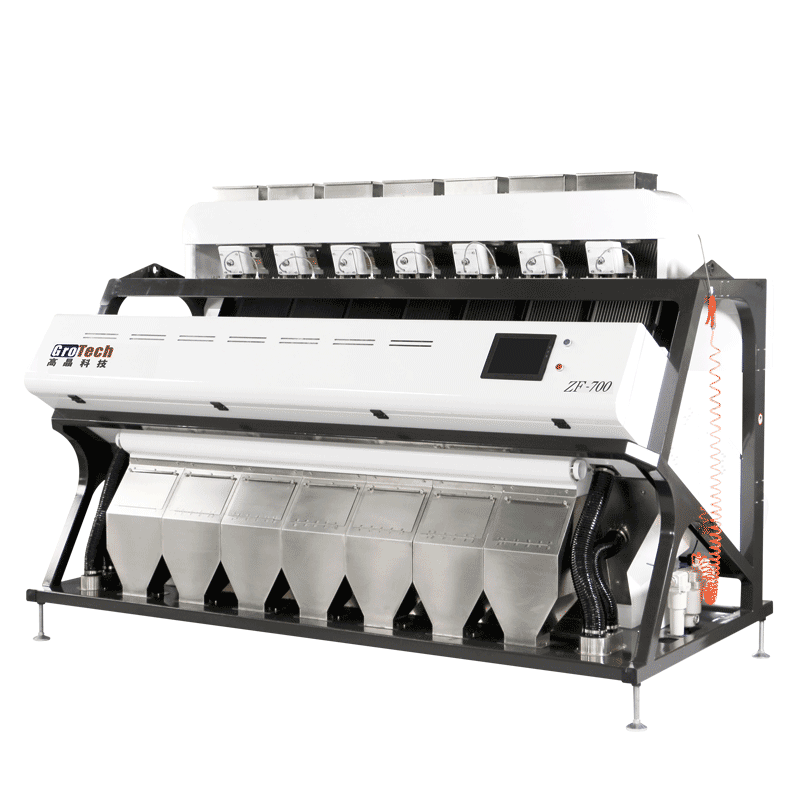

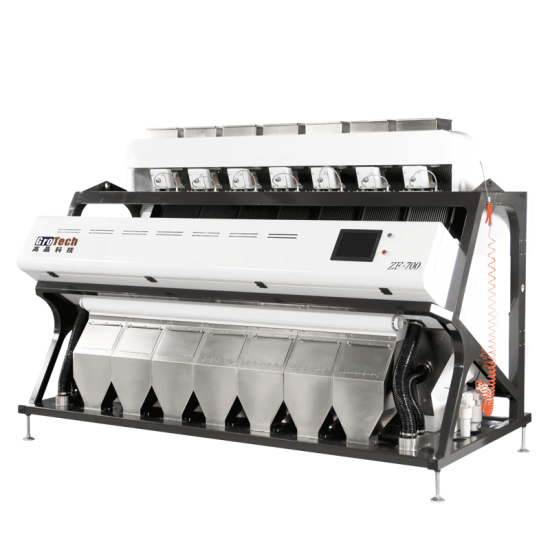

Digital Intelligent Wheat Color Sorter Machine
*Optical Sorting Technology With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*Efficient And Stable Software System，Intelligent Algorism，User Friendly Interface;
*Installing in Flour milling processing plant with Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*Wheat Sorting Machine With SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*Expert Sorting Solution Realizes One Key Debugging
*China Grotech Provide Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations
/Parameter Table/
Model
ZF300
ZF500
ZF700
Throughput(T/H)
1.0-3.0
2.0-5.0
3.0-8.0
Voltage(V)
110-250V（50-60HZ）
Power(KW)
1.8
2.6
3.5
Weight/(KG)
885
1275
1665
Dimension(L*W*H/mm)
1174*1658*2038
2402*1658*2038
3030*1658*2038
Sorting accuracy(%)
≥99
Rejection rate(%)
≥10:1
Air consumption（L/min)
800-1600
1300-2200
1800-3600
Notes
Subject to different impurities of raw materials,parameters listed in table will change to some extent
Model
ZF700
Optimized Carryover (Bad : Good)
30:01:00
Product output(t/h)
3.0-8.0
Heating of tray
YES
Camera
CCD
Type of selection
Per size/color
Remote Access&Control (connectivity)
YES
Channel split
N/A
Net Weight (kg)
1665
Europe Certification
YES
Type of illumination
LED LAMP
Power consumption(kw)
3.5
Dimension L×W×H(mm)
3030*1658*1850
Power supply(V/HZ)
220V±10%
50/60HZ
/Sorting Results/
/Sorting Examples/
