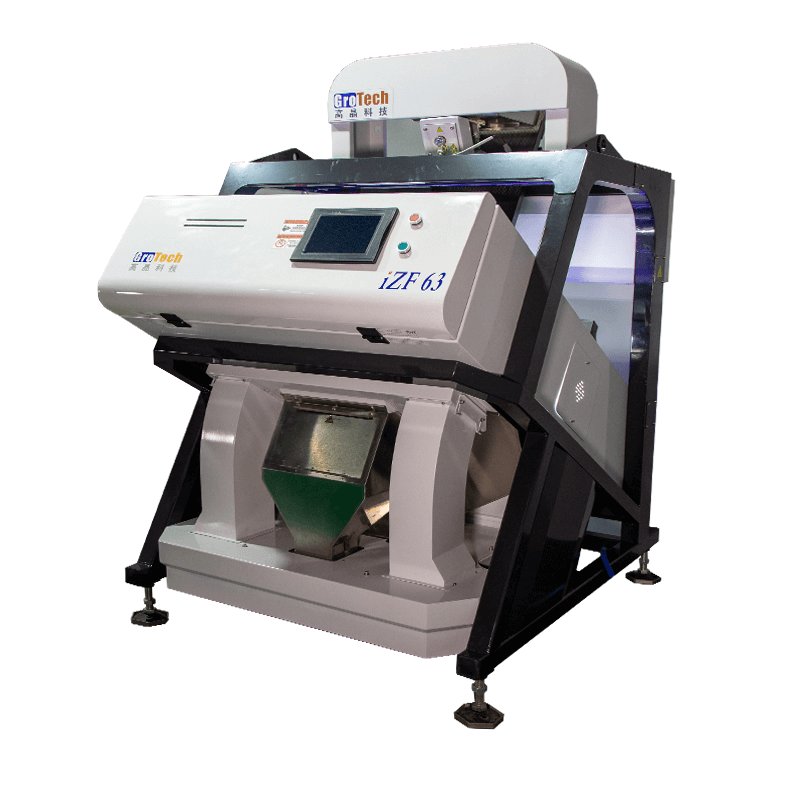

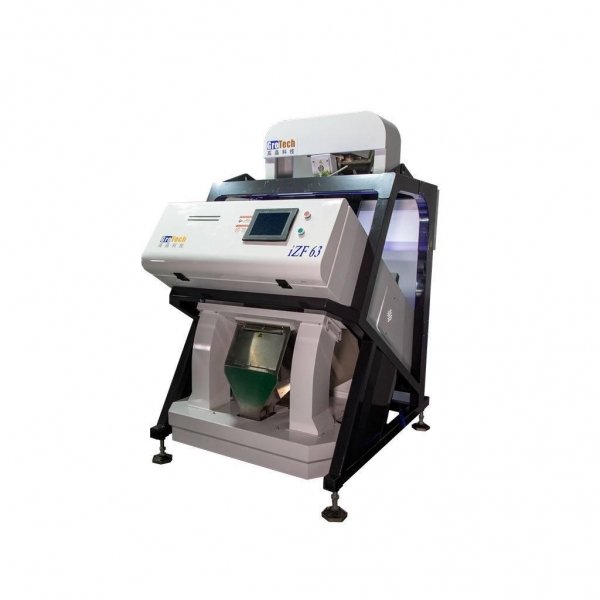

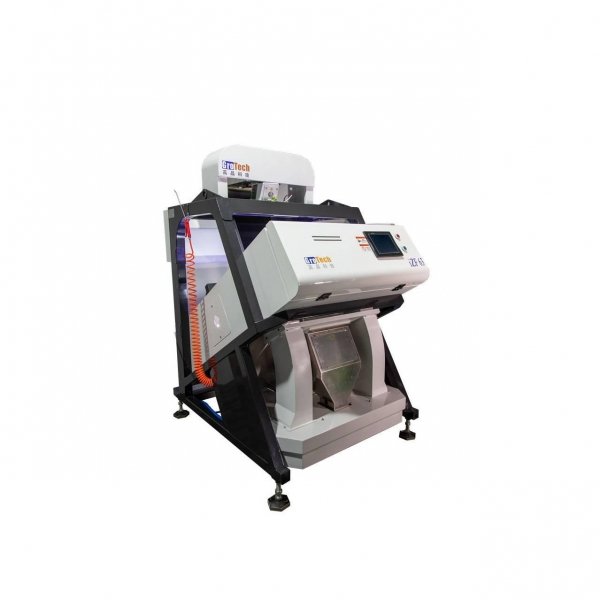

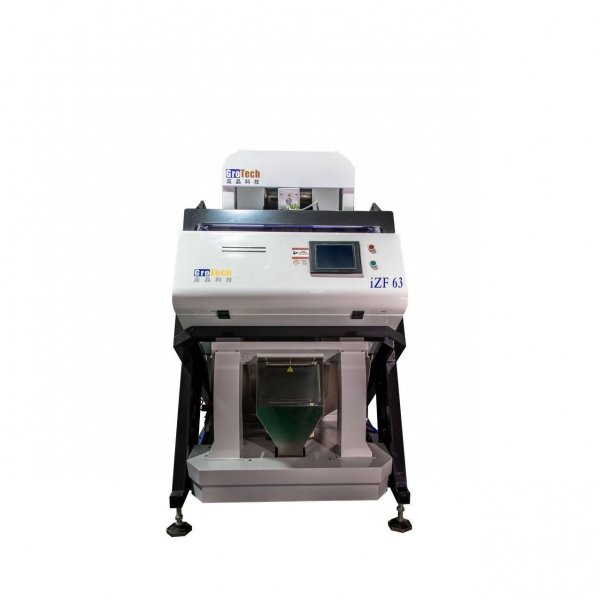

Infrared Color Sorting Machine

GROTECH Lentils Color Sorter Machine, Lentils Sorting Machine, is to separate the shells and remove the other foreign
materials out, be applied to work after lentils pre-cleaing, hulling, splitting, polishing etc processing units.

  • ItemNo :

    iZF63
  • Brand:

    GROTECH
  • MOQ :

    1
  • Orgins :

    China
  • Color :

    Customized
  • port :

    Any Port In China
  • Lead Date :

    15-45days
  • Sensor:

    Hamamatsu InGaAs CMOS
  • Product Details


           /Products Features/

Infrared Color Sorter Machine from China Grotech Manufacturering and R&D

*Optical sorting technology with Hamamatsu InGaAs CMOS Camera;

*FPGA with Intel 5th generation chip

*Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;

*Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;

*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;

*Infrared Colour Sorter With Expert Sorting Solution Realizes One Key Debugging

*China GroTech Sorter With Remote Control&Debugging, Diagnosing And Maintenance.


           /Parameter Table/


Model iZF63 iZF126
Optimized Carryover
(Bad : Good)
5:1 5:1
Product output(t/h) 0.2-1.0 0.5-2.0
Heating of tray YES YES
Camera

InGaAs Sensor

CCD

InGaAs Sensor
CCD
Type of selection Per size/color Per size/color
Remote Access&Control
 (connectivity)
YES YES
Channel split N/A N/A
Net Weight (kg) 645 750
Europe Certification YES YES
Type of illumination LED LAMP
HALOGEN LAMP
LED LAMP
HALOGEN LAMP
Power consumption(kw) 1.2 1.8
Dimension L×W×H(mm) 1150*1780*2050 1475*1780*2050
Power supply(V/HZ) 220V±10%
50/60HZ
220V±10%
50/60HZ


Model

iZF63

iZF126

iZF189

FPGA

INTEL V CHIP

INTEL V CHIP

INTEL V CHIP

Voltage(V)

110-250V(50-60HZ)

Power(KW)

1.8

2.6

3.5

Weight/(KG)

885

1275

1665

Dimension(L*W*H/mm)

1174*1658*2038

2402*1658*2038

3030*1658*2038

Sorting accuracy(%)

≥99.99

Rejection rate(%)

≥20:1

Air consumption(L/min)

800-1600

1300-2200

1800-3600

Notes

 Subject to different impurities of raw materials,parameters (accuracy&rate) listed in table will change to some extent


                  /Sorting Results/

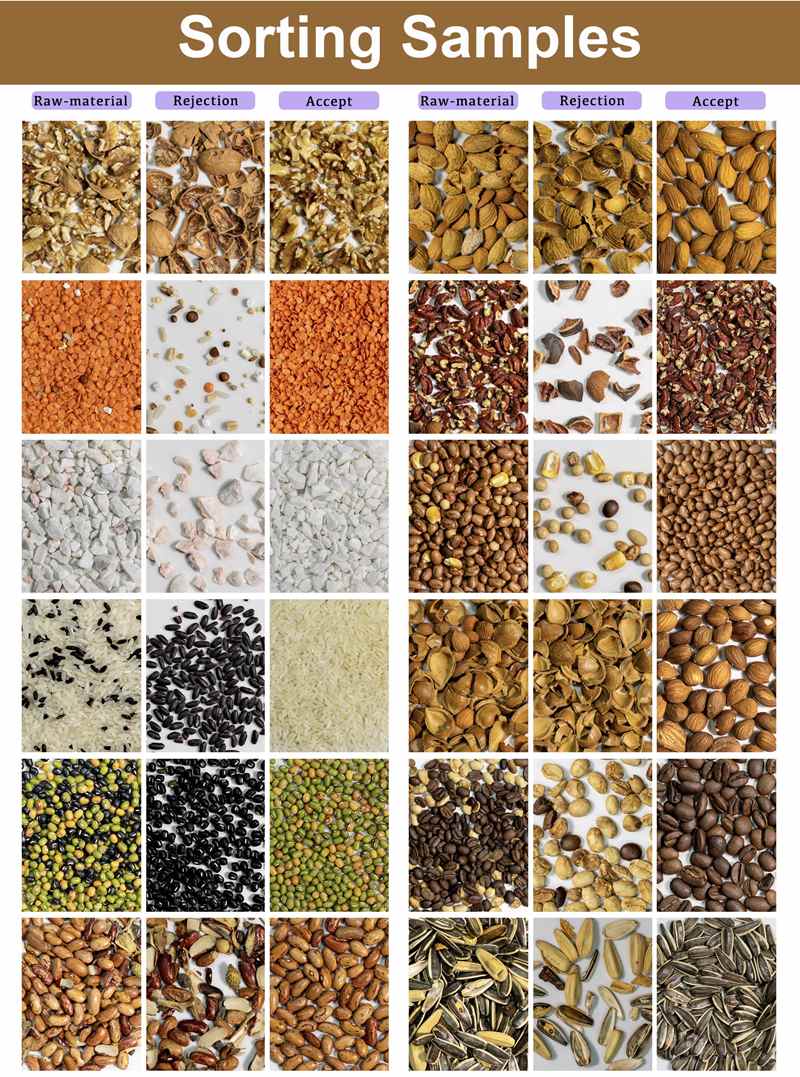

             /Sorting Samples/

Infrared Color Sorter Sorting Samples

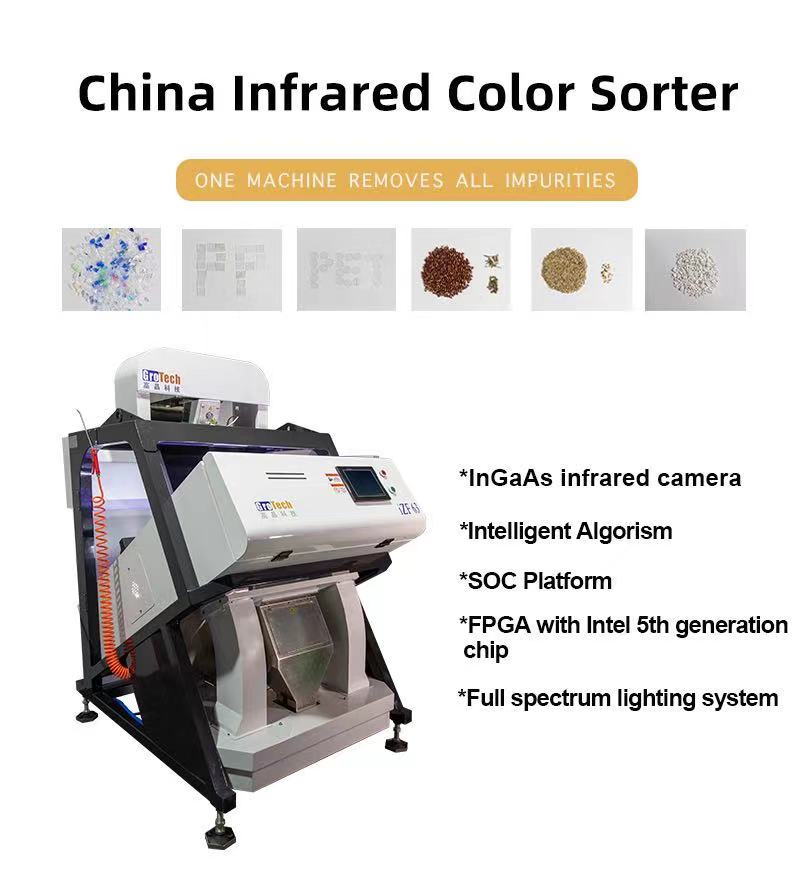

China Infrared Color Sorter Machine

Infrared Color Sorter Quality Assurance
