AI MultiFunciton Wheat Color Sorter Machine

AI MultiFunciton Wheat Color Sorter Machine

GROTECH Wheat Color Sorter Machine, RGB CCD Optical wheat Sorting Machine, 1-14 Chutes, 64-768 channels, which could be applied into flour wheat milling proccessing units for cleaning before packing, Capacity Range could cover 5-30 tones per hour based on your mills require.

  • ItemNo :

    ZF500
  • Brand:

    GROTECH
  • MOQ :

    1
  • Orgins :

    China
  • Color :

    Customized
  • port :

    Any Port In China
  • Lead Date :

    15-45days
  • Price Range:

    50000-100000/1
  • Trichromatic RGB CCD:

    5400elements×3 Lines
  • Product Details

           /Products Features/

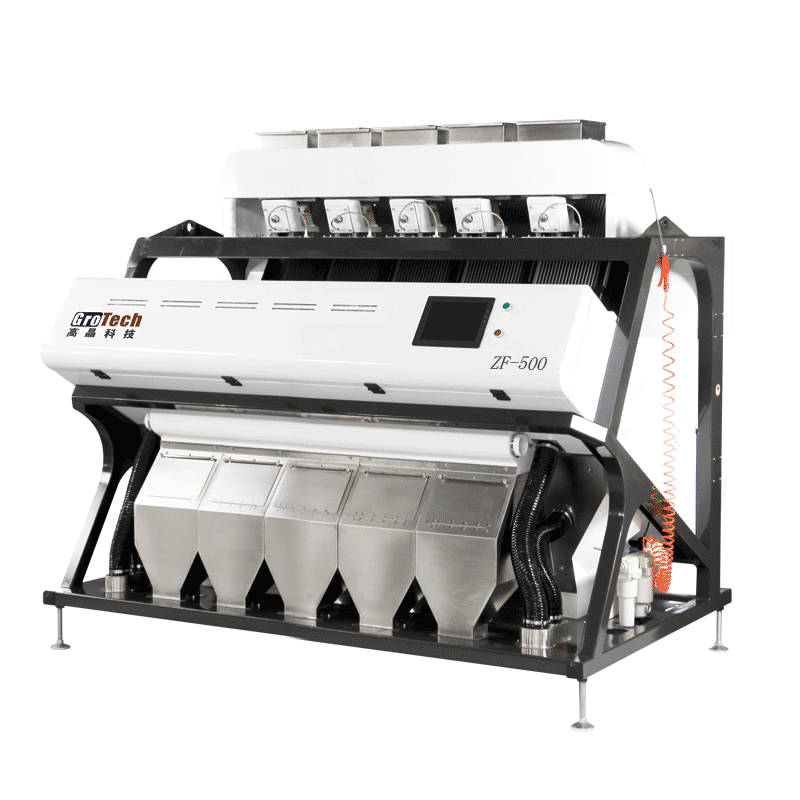

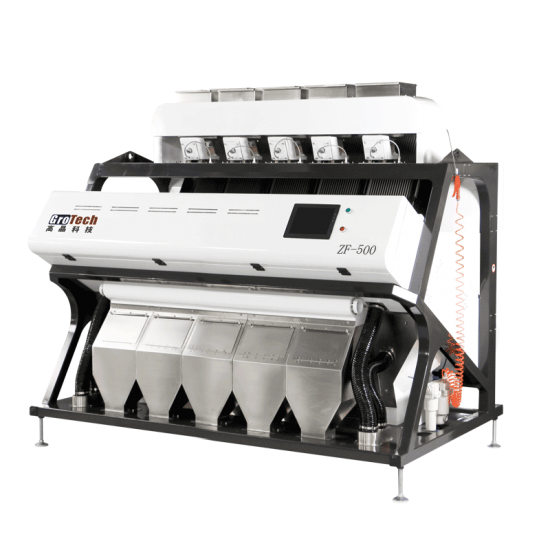

Digital Intelligent Wheat Color Sorter Machine

*Optical Sorting Technology With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;

*Efficient And Stable Software System,Intelligent Algorithm,User Friendly Interface;

*Installing in Flour milling processing plant with Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;

*Wheat Sorting Machine With SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;

*Expert Sorting Solution Realizes One Key Debugging

*China Grotech Provide Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations


           /Parameter Table/


Model ZF500
Optimized Carryover
(Bad : Good)
30:1
Product output(t/h) 2.0-5.0
Heating of tray YES
Camera CCD
Type of selection Per size/color
Remote Access&Control
 (connectivity)
YES
Channel split N/A
Net Weight (kg) 1250
Europe Certification YES
Type of illumination LED LAMP
Power consumption(kw) 2.6
Dimension L×W×H(mm) 2402*1658*1850
Power supply(V/HZ)
220V±10%
50/60HZ

Model

ZF300

ZF500

ZF700

Throughput(T/H)

1.0-3.0

2.0-5.0

3.0-8.0

Voltage(V)

110-250V(50-60HZ)

Power(KW)

1.8

2.6

3.5

Weight/(KG)

885

1275

1665

Dimension(L*W*H/mm)

1174*1658*2038

2402*1658*2038

3030*1658*2038

Sorting accuracy(%)

≥99

Rejection rate(%)

≥10:1

Air consumption(L/min)

800-1600

1300-2200

1800-3600

Notes

 Subject to different impurities of raw materials,parameters listed in table will change to some extent
