garlic color sorter (2022 high speed model)

garlic color sorter (2022 high speed model)

garlic known as Allium sativums ,has long been used as a seasoning worldwide.

GroTech is one of china color sorter manufacture. The 2k high-resolution camera of the high-speed crawler-type color sorter will identify and process all the garlic seeds, which will increase the output of the machine to more than double the original while ensuring production efficiency.

  • Brand:

    GROTECH
  • MOQ :

    1
  • Product Details

A typical scenario for using a garlic color sorter is to sort out garlic seeds that are not entirely peeled or garlic seeds that have been peeled but have different colors or sprouted, damaged, moldy. Because garlic is large and irregular in shape (compared to rice or other cereal crops), the garlic seeds will roll over when they slide down the chute so that the color sorter cannot fully analyze its appearance. so usually, we use a belt color sorter to sort it out.



garlic  bad garlic



           /Products Features/

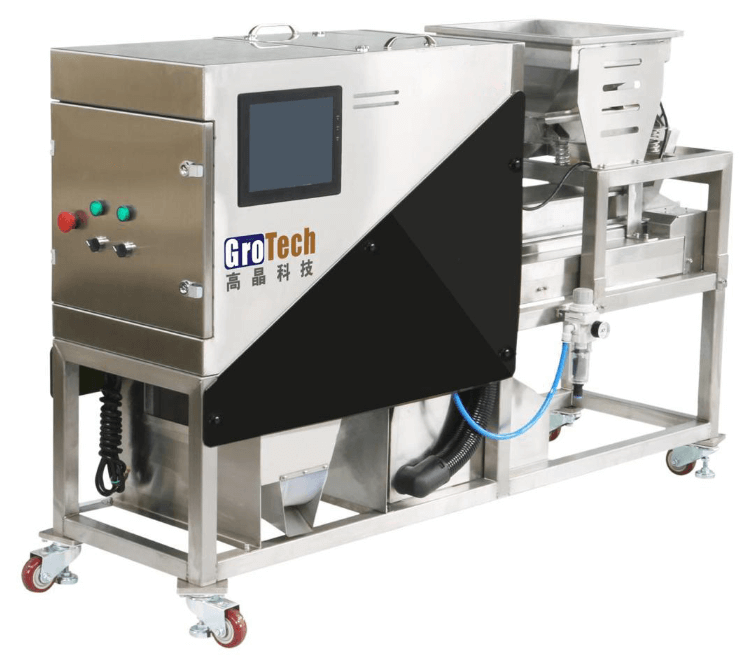

GroTech LF Series Belt Type Color Sorter Machine For garlic:

*Multispectral CCD Sensor (Up To 8K Resolution);

*Variety of long-life ejectors are available to reduce operating costs;

*Built-in up to 40 garlic sorting schemes, reducing learning costs;

*Support both shape and color sorting arithmetic;

*One-Key intelligent generation of color sorting scheme to deal with complex scenes;

*Belt customized for garlic materials;

*Support both WiFi&4G&5G signal Remote Control system Can quickly locate and solve problems;


           /Parameter Table/




Model

LD60

            LD90

Throughput(T/H)

1.2-2.4

1.6-3.2

Voltage(V)

110-250V50-60HZ

110-250V50-60HZ

Power(KW)

2.5

3.5

Weight/(KG)

730

1230

Dimension(L*W*H/mm)

3750*1540*1680

3750*1822*1680

Sorting accuracy(%

≥99.9

≥99.9

Rejection rate(%)

10:1

10:1

Notes

 Subject to different impurities of raw materials,parameters listed in table will change to some extent
